Model No.︰S-HR3PUV
Brand Name︰LC
Country of Origin︰China
Unit Price︰US $ 60069 / pc
Minimum Order︰1 pc

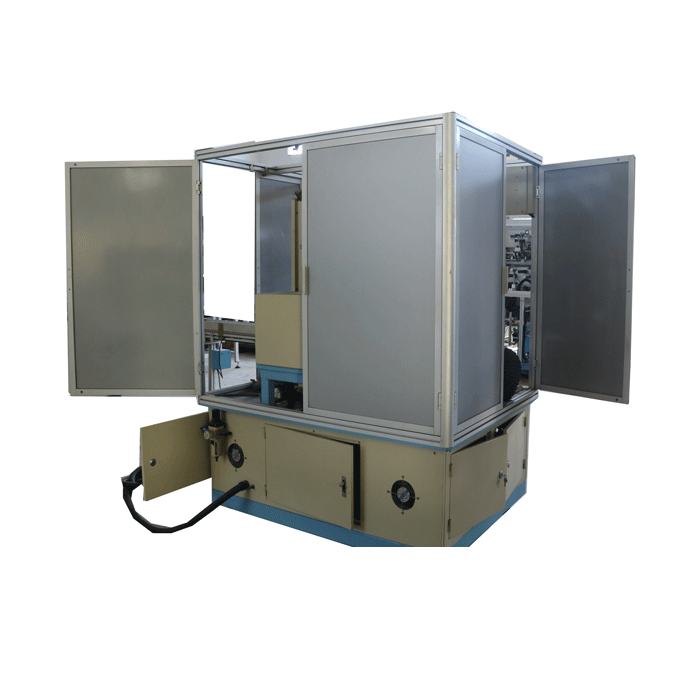

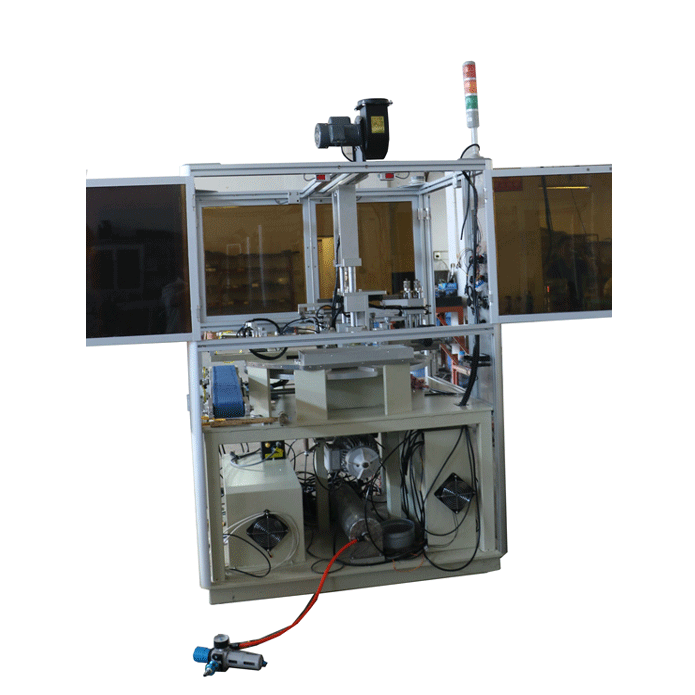

Fully automatic flat turntable UVLED three-color screen printer:
Working principle
Through computer control, the pattern to be printed is converted into a digital signal, and the control system drives the flat turntable to rotate, accurately transferring the plastic products to each station in turn. At the printing station, the squeegee applies pressure to the ink on the screen printing plate, so that the ink is squeezed from the mesh of the graphic part onto the plastic product. After completing the printing of one color, the turntable transfers the product to the next printing station for the second and third colors. After each printing, the UVLED lamp quickly cures the ink, and finally completes the three-color printing.
Structural design
• Fully automatic operation: From the loading, printing, curing to unloading of plastic products, the entire process does not require excessive human intervention, which can realize automated production, improve production efficiency, reduce labor costs, and reduce quality problems caused by human factors.
• Flat turntable: The turntable rotates smoothly and with high precision, which can ensure the accurate transfer and positioning of plastic products between each station, which is conducive to achieving the accuracy of multi-color overprinting and improving printing quality.
• UVLED curing system: UVLED lamp is used as the curing light source, which has the advantages of fast curing speed, low energy consumption and long life. It can completely cure the ink in a short time, improve production efficiency, and UVLED cured ink has better wear resistance, corrosion resistance and glossiness, which improves the printing effect and service life of plastic products.
Performance advantages
• High speed: It has a fast printing speed and can print a large number of plastic products per hour, which can meet the needs of large-scale production, improve production efficiency and reduce production costs.
• Three-color printing: Three-color printing can be completed at one time, enriching the color performance of plastic products, making the printed pattern more bright, vivid and realistic, and enhancing the visual effect and market competitiveness of the product.
• Wide range of applications: It can be used for printing a variety of plastic products, such as plastic packaging boxes, plastic toys, plastic stationery, etc. It has good adaptability to plastic products of different shapes and sizes. By adjusting the fixture and printing parameters, accurate printing can be achieved.
|
Automatically plain 3 colors screen printing machine//Usage and characters |
|
|
Guide |
|
|
Application fields |
|
|
3 colors Full automatically plain screen printing Machine//Parameter |
|
|
Technical parameters |
|
|
Works supply |
|
|
Package list |
|
|
H.S.Code |
8443198000 |
|
Certificate |
CE |
|
plain3-color full automatically screen printing machine//Advantage |
|
|
Function |
|
|
Main configuration |
|
Summary︰
The turntable worktable is adopted, and the loading and unloading adopts a manipulator. This is the main form of transition from a semi-automatic flat screen printing machine to an automatic screen printing machine. The feeding manipulator completes the movement of the product from the feeding conveyor belt to the turntable worktable, while the screen printing machine completes the product From the pre-press processing, positioning, printing and other processes, the robot unloads the material to complete the movement of the product from the turntable table to the drying device. The drying device can be a UV curing oven or an infrared drying oven. For the printing of metal parts, the main difference is the choice of metal ink. This video shows the method of using UV metallic ink and performing dual drying methods of infrared drying and UV drying. The printing speed is fast and the printing quality is high.
