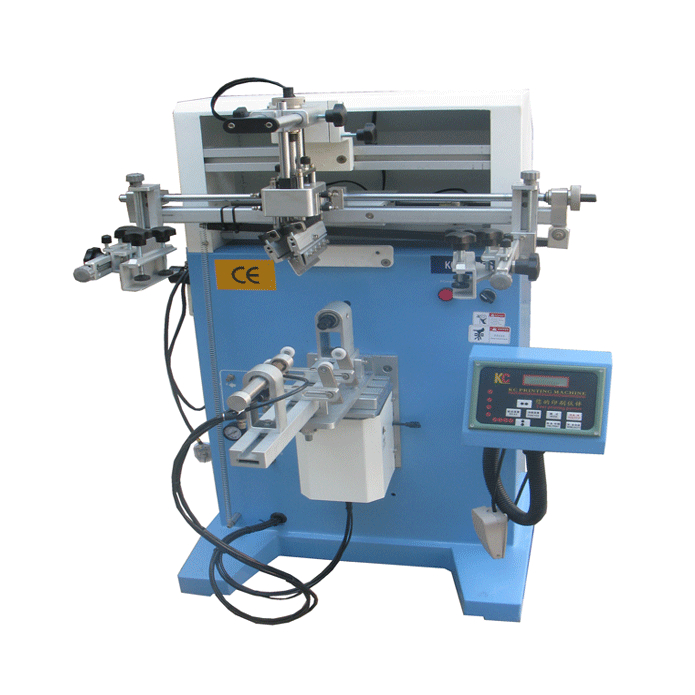

Screen printing machine S-125S

  • Screen printing machine S-125S
  • Screen printing machine S-125S
  • Screen printing machine S-125S
  • Screen printing machine S-125S
  • Screen printing machine S-125S
  • Screen printing machine S-125S
Model No.︰S-125S
Brand Name︰LC
Country of Origin︰China
Unit Price︰US $ 2573 / pc
Minimum Order︰1 pc
Share on:

 Total 13 Related Items
Prev12345Next

Product Description

S-125S  Multi-function cylinder screen printing machine//Structure

Working table

Cylinder workbench/The elliptical cylinder workbench/Flat workbench

Actions

Up-down of working table

To be printed

  • Round diameter:125mm;
  • Cylindroid Height: 260mm;
  • Flat: 300*400mm

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

S-125S Multi-function screen printing machine//Usage and characters

Guide

  • 125mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
  • Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
  • With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
  • Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
  • Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
  • You can use the foot switch for automatic operation, the safety factor greatly increased;
  • Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

S-125S  Multi-function screen printing Machine //Parameters

Technical parameters

  • Gear line width:14mm, Length: 540mm;
  • Maximum printing thickness: 300 MM;
  • Air consumption: 80 Liter/Min;
  • The diameter of maximum printing workpiece: Φ125MM ;
  • The arc of maximum printing workpiece: 380MM;
  • The maximum printing speed: 1300Pc/H;
  • Weight: 187kg.
  • Max Frame dimension: 550×400mm;
  • Maximum Plain printing area:300×400mm;
  • Max diameter of workpiece: Φ150MM

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Ship parameters

  • Outer Dimension:0.87m×0.95m×1.33m;
  • Net weight: 140KG.
  • Dimension:0.9m×0.92m×1.36m;
  • Gross weight: 175KG;
  • CBM: 1.12608

H.S.CODE

8443198000

Certificate

CE

S-125S Multi-function screen printing Machine//Advantage

Function

  • Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
  • Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
  • High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
  • High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
  • Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
  • Microcomputer control program operations, set up a variety of modes;
  • Four counts digital LED count, high degree of automation;
  • Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
  • Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
Fittings Description size Price
1 IC Plate   225usd
2 1416 bumper   41usd
3 Spring   8usd
4 Footswitch   19usd.
