Stand pad printer(PM1-300)

Model No.︰

PM1-300

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 3309 / pc

Minimum Order︰

1 pc

Share on:

Product Description

One color pad printer //Structure

Working table

Standard working table with 3-size adjustment

Ink supply system

Open inkwell-type system

Plate type

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , simultaneously pressing

One color pad printer//Usage and characters

Guide

  • With Open inkwell to store ink, ink adjustment more convenient, more suitable for striking observation.
  • With coin aluminum structure ensure more stabilization and long life.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection;
  • Self-balanced scraping ink technology, squeegee clean, easy to replace

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

One color pad printer //Parameter

Technical parameters

PM1-250

PM1-300
  • Max. plate size: 200×250;
  • Max. worktable area: 400×150mm;
  • Max. printing area: 170×220;
  • Max. printing speed: 1400pcs/h;
  • Printable color quantity:1.
  • Max. plate size: 200×300;
  • Max. worktable area: 400×150mm;
  • Max. printing area: 170×270;
  • Max. printing speed: 1400pcs/h;
  • Printable color quantity: 1

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package domension: 0.900×0.580×1.470M;
  • Gross weight: 130kg;
  • CBM: 0.76734

H.S.Code

8443198000

Certicate

CE

One color pad printer //Advantage

Function

  • Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
  • T-slot structure, easy installation of fixtures and products;
  • Hand pick and place workpiece, operating more handy;
  • Microcomputer program control, the movement is more accurate and reliable;
  • Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
  • Equipped with four counters, can effectively measure the number of products;
  • Structure using die-casting aluminum, lightweight and solid.
  • Independent Rubber pad up and down stroke and speed adjustment function;
  • Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
  • Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
  • World famous pneumatic components to ensure the long service life of machine;
  • Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
  • Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.

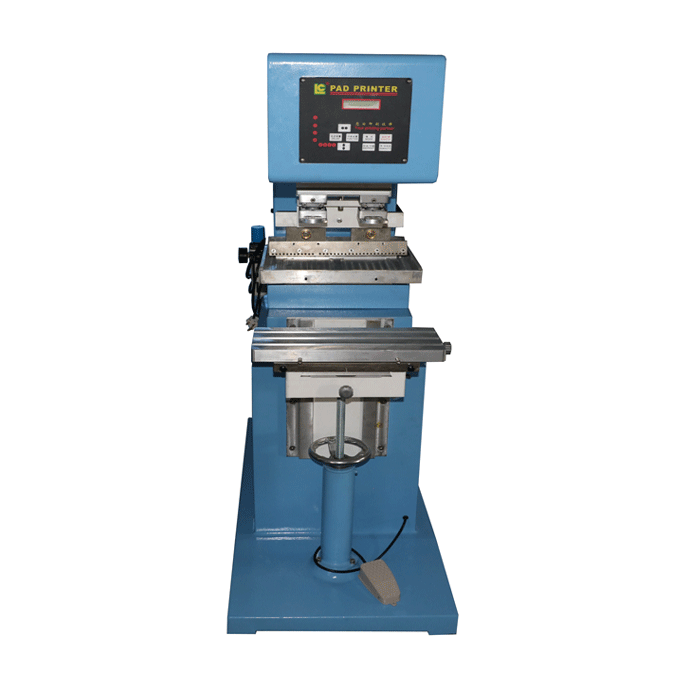

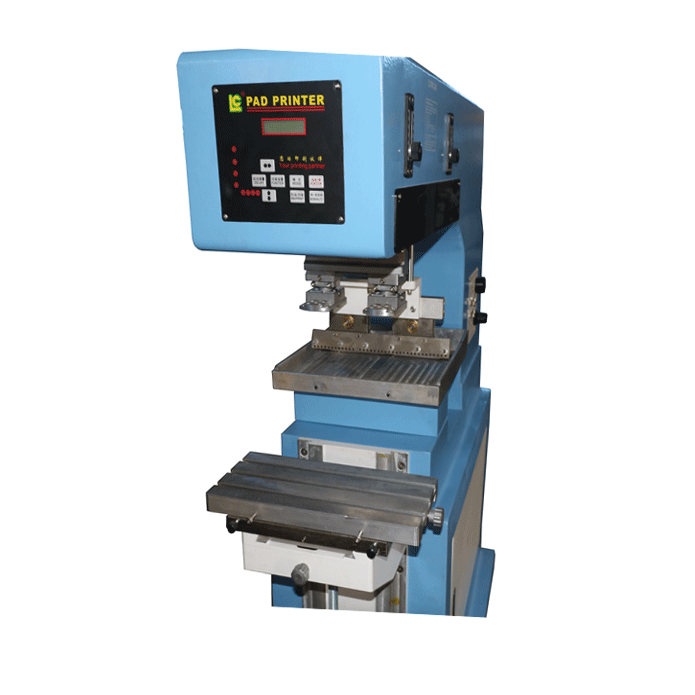

Product Image
