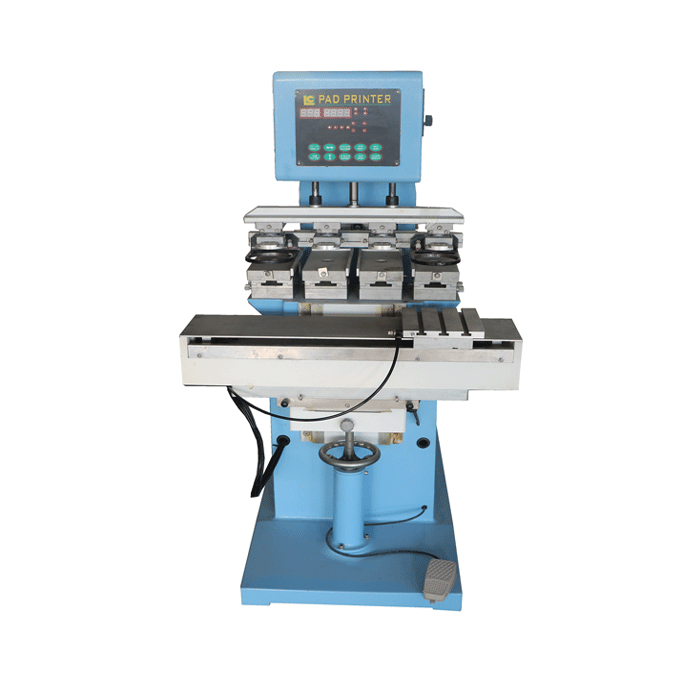

Shuttle pad printer(SPM4-150T)

Model No.︰

SPM4-150T

Brand Name︰

Country of Origin︰

China

Unit Price︰

US $ 4117 / pc

Minimum Order︰

1 pc

Total 9 Related Items

Product Description

The four-color shuttle ink cup pad printing machine is an ink cup pad printing machine equipped with a four-station shuttle workbench. The diameter of the oil cup is 90mm. It is driven by an independent cylinder, and the scraping ink is cleaner. It adopts a microcomputer panel operating system, and the operation is easier. Simple and convenient; the shuttle table adopts pneumatic control, although the accuracy is reduced, but the maintenance cost is low. The four-color shuttle ink cup pad printing machine can complete 1-color to 4-color product printing, with high overprint accuracy, and is suitable for products with large dimensions.
With the development of the market and changes in user needs, the four-color ink cup pad printing machine can also be upgraded to touch screen human-machine interface operation, and the workbench can also be upgraded to servo motor control. The printing function is more powerful and the product adaptability is stronger.

SPM4-150T 4 colors pad printer with shuttle//Structure
Working table	4-station shuttle-type working table
Shuttle stroke	125mm
Ink supply system	90mm diameter Closed cup type system
Plate type and size	0.3mm Thin steel sheets plate. Size ：100*250mm.
Pad dropping control	Simple-cylinder , Continue pressing
Ink drying	Heat air
SPM4-150T 4 colors pad printer//Usage and characters
Guide	Print both one color to 4 colors with shuttle worktable， overprint is more precision. With sealed cup to store ink, saving ink and environment protection ; With coin aluminum structure ensure more stabilization and long life. Independent sealed cup driving device, Ink removing completely . Make min Pressure to remove ink; Can print almost small size objects. So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send..
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
SPM4-150T 4 colors pad printer with shuttle//Parameter
Technical parameters	SPM4-150T 4 colours sealed cup pad printer with shuttle. Max. plate size: 100×250mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm. Max. printing speed: 550pcs/h. Printable color:4 Shuttle stroke:125mm. Max print area: 80×130mm. SPM4-200T 4 colours sealed cup pad printer with shuttle. Max. plate size: 100×300mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm Max. printing speed: 550pcs/h. Printable color: 4 Shuttle stroke:125mm. Max print area: 80×170mm。
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package dimension: 1.210×0.780×1.520m Gross weight: 278KG. CBM: 1.43453
H.S.Code	8443198000
Certicate	CE
SPM4-150T 4 colors pad printer with shuttle //Advantage
Function	Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; Shuttle working table installed to get more precision overprint; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Closed cup to store and coating ink , save ink and protect environment . Automatism digital count function; 4 colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Independent cup driven cylinder ensure ink remove clean.

Summary︰ The four-color shuttle ink cup pad printing machine is an ink cup pad printing machine equipped with a four-station shuttle workbench. The diameter of the oil cup is 90mm. It is driven by an independent cylinder, and the scraping ink is cleaner. It adopts a microcomputer panel operating system, and the operation is easier. Simple and convenient; the shuttle table adopts pneumatic control, although the accuracy is reduced, but the maintenance cost is low. The four-color shuttle ink cup pad printing machine can complete 1-color to 4-color product printing, with high overprint accuracy, and is suitable for products with large dimensions.
With the development of the market and changes in user needs, the four-color ink cup pad printing machine can also be upgraded to touch screen human-machine interface operation, and the workbench can also be upgraded to servo motor control. The printing function is more powerful and the product adaptability is stronger.
